iPhone app HC ROP

=== Name of App ===

HC ROP (HC series memory camera recorder Remote Operation Panel)

=== Description ===

HC ROP is a control program that enables the wireless remote control of the memory camera recorder Panasonic HC-X series and Panasonic AG-CX series(excluding some models).

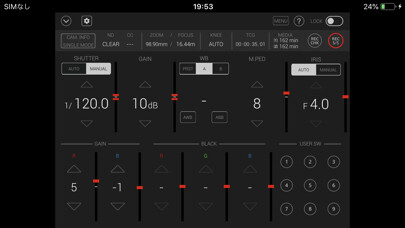

It provides a GUI that displays status information, settings and user switch status in a single screen and the ability to change camera settings intuitively using a screen touch.

Buttons such as user buttons and REC S/S button in screen can manipulate camera recorder.

HC ROP cam manipulate one memory camera reorder by switching up to eight memory camera reorders.
Please tap a ? button to see a hint for usage of this app.

=== Applicable Model ===

HC-X1500, HC-X2000

AG-CX7, AG-CX8, AG-CX10, AG-CX98

=== Supported OS ===

iOS11 or later

iPadOS 13 or later

=== Features ===

1.
Camera status display

- List of camera information

- ND/CC FILTER

- ZOOM/FOCUS

- KNEE

- TCG

- Remaining time of recording media

2.
CONTROLLABLE FUNCTIONS

- SHUTTER (AUTO/MANUAL)

- GAIN

- WHITE BALANCE(PRE/A/B, AWB, ABB)

- MASTER PEDESTAL

- IRIS(AUTO/MANUAL)

- Painting GAIN(R/B)

- USER SW (1-9)

- MENU display and setting

- HELP

- LOCKdisable operation on HC ROP)

- ZOOM(i.ZOOM/i.ZOOM_OFF)

- FOCUS(AUTO/MANUAL)

- KNEE(AUTO/MANUAL(MID))

- TCG(TC/UB display and setting)

- REC CHECK

- REC Start/Stop

3.
Settings and switching of a connected camera

You can set or switch connected cameras in a connect setting panel by tapping a connect manipulation button in the screen.
Please refer to CONNECTION item by tapping ? for details.

=== NOTE ===

(1)Permission for the local network is required since iOS14.
If you cannot connect the app to the camera, make the following settings.

1.
Open Settings on iPhone/iPad

2.
Select Privacy>Local Network

3.
Set HC ROP to ON

(2)In iOS, camera information may not be displayed correctly on the app screen.This can be fixed by turning on airplane mode and then turning off again.

1.
Close CX ROP.

2.
Select Settings on the device home screen

3.
Turn on Airplane mode

4.
Turn off Airplane mode

5.
Launch CX ROP

*These settings need to be repeated after turning off or restarting the device.,
